88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved

Shanghai SuperGarage Automotive Co.,Ltd
Contact Now
    Buy cheap 88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved from wholesalers

    Buy cheap 88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved from wholesalers
    • Buy cheap 88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved from wholesalers

    88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved

    Ask Lasest Price
    Brand Name : SG
    Model Number : SG-BL870C
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 800 Units per month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

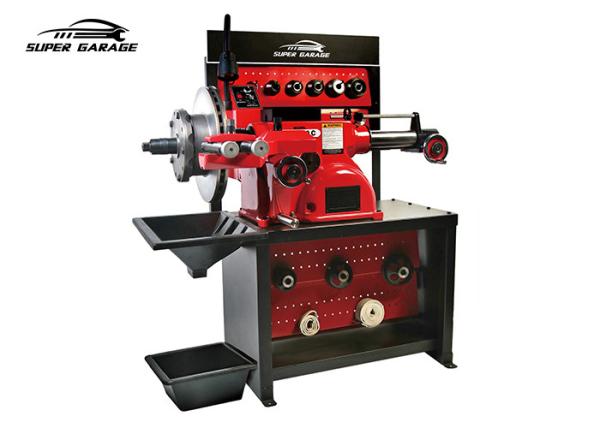

    88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved

    Auto Brake Lathe Machine Electric Car Brake Drum Brake Drum And Brake Disc Lathe Machine SG-BL870C


    Brake Lathe SG-BL870C


    Technical Data:


    ModelSG-BL870C
    Spindle Travel9.875”/251mm
    Spindle Speed70/88/118RPM
    Rotor Diameter7''-18''(180-457mm)
    Rotor Thickness2.85”/73mm
    Drum Diameter6-17.7”/152-450mm
    Drum Depth9.875”/251mm
    power supply110/220V,1PH,50/60HZ, 380V ,3PH, 50/60HZ

    Features:

    • DC motors are designed to meet the demanding requirement of industrial motion control.
    • “Change Adapter” system to eliminate the need for conventional bell clamps and cones.
    • The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
    • Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.
    • Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.
