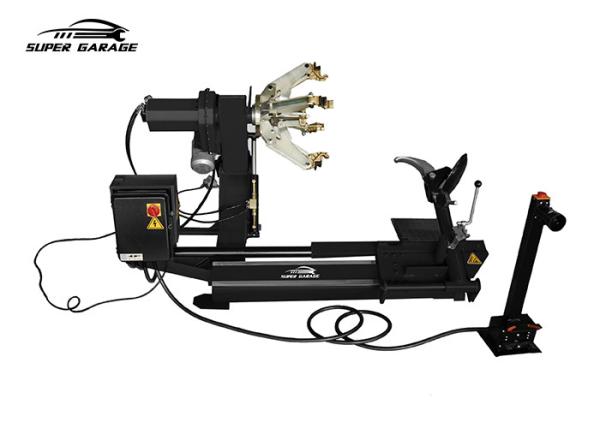

Semi-Automatic Truck Tire Changer 14 "- 26" For Light Truck Tire Changer For Big Diameter Tires SG-TC568

TECHNICAL DATA

1. Rim Clamping Capacity: 14"-26"
2. Max. wheel weight:500kg
3. Max. Wheel Assembly Width:780mm
4. Max. Wheel Assembly Diameter:1600mm
5. Pump Motor: 1.5 kw,380v-3ph,50Hz(220V Optional)
6. Gearbox Motor: 1.8kw, 380v-3ph 50Hz(220V Optional)
7. Bead breaker force:2500kg
8. Operation control voltage:24V
9. Power Supply:220V/400V/50/60HZ/1P/3P

MAIN FEATURES

Automatic professional tire changer for heavy operations and demanding truck tire services and car repair shops. Suitable for normal and tubeless tires. Self-centering 4-arm hydraulic chuck, which is moved by a two-speed motor. The mounting head can move clockwise and counterclockwise. A hydraulic jack, which moves the entire arm, takes care of its movement up and down. The hydraulics also take care of the tool head arm, which has an automatic lifting and manual rotation. The machine includes a mobile remote control and a ramp that makes it easy to adjust the wheel to the correct position.

• Suitable for normal and tubeless tires
• Wheel clamping in the range 14 "- 26"
• Self-centering rotary table
• Mobile remote control
• Mobile ramp with wheels for easier movement of the wheel to the correct position
• Two-speed engine
• Tool head with automatic lifting and manual rotation
• Universal tool head

Optional Parts:

Alu-alloy rims protection rings

Alu-alloy rims protection set
