SG-PB7500 Automotive Paint Booth Oven CE Approved With Intake / Exhaust Fan

Product Categories

Shanghai SuperGarage Automotive Co.,Ltd

Contact Now

Add to Cart

SG Automotive Paint Booth Cabina De Pintura Auto Car Spray Booth Oven For Car Painting SG-PB7500

Technical Data:

MODEL		SG-PB7500(PRO)
External Dimension LxWxH(m)		7.0x5.56x3.43
Internal Dimension LxWxH(m)		6.9X4.0X2.65
Car Entrance WxH(m)		3.0x2.65
Working Door WxH(m)		1.8x0.65
Total Power(KW)		16
Working Voltage		220/380V/50/60Hz/3Ph
Chamber System	Wall Panel	Sandwich Style, 70mm thickness, EPS Filler+0.426mm Color Steel Skin
	Roof Panel	Galvanized Steel
	Basement	5 Rows of Grilles
	Ramp	3 Pieces Anti-Skid Diamond Plates
Air Supply System	Intake Ventilator	2*5KW Double-Inlet Centrifugal Fan
	Outlet Ventilator	1*7.5KW Centrifugal Fan
	Air Capacity	24000m4/h
	Air Speed	0.36m/s
	Air Change Ratio	320 Times/h
Air Purification System	Ceiling Filter	Italian Import,Dust Particles Catching Capability＞4μm
	Intake Air Filter	Dust Particles Catching Capability＞10μm
	Outlet Air Filter	Activated Carbon
	Floor Filter	Italian Import Fiber Glass,,TSP value＜1.4mg/m3
Heating System	Burner	G20 Riello Diesel Burner, 180,000Kcal/h, Gas Burner for Option
	Heat Energy Converters	SOS304 Stainless Steel heat exchanger, Max Temp:80℃, Heating Time:5-6min(20’-60℃), Fuel Consumption: 5-8kg/vehicle
	Air Damper	Electric Control by BELIMO Electronic Actuator, Spraying&Curing Can Be Switched Automotively
	Oil Tank	50L

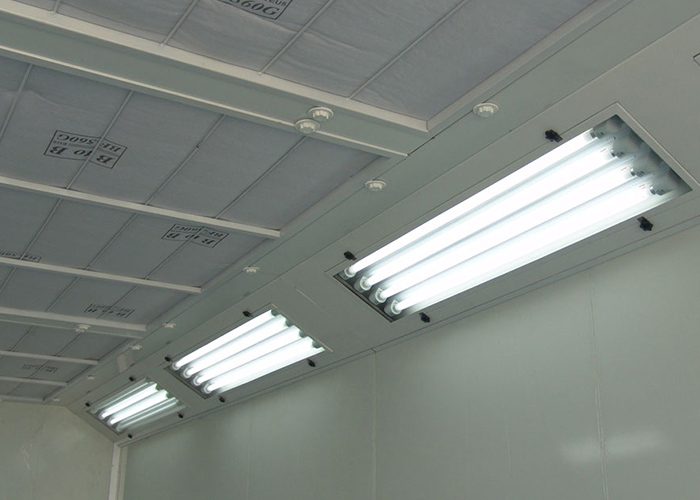

Lighting System	Ceiling Light	32x18W LED Lamps
	Side Light	16x18W Lamps
	Luminance(Lux)	1000
Electronic Control System	Control Box	Microcomputer Programming, Motor Direct Start,Overload, Overheat,Phase-Lacking Protections, Light Switch, Spray & Baking Switch, Emergency Stop, Breakdown Alarm, Main Components use Brand Siemens or Schneider

Optional:

Endothermic Panel
