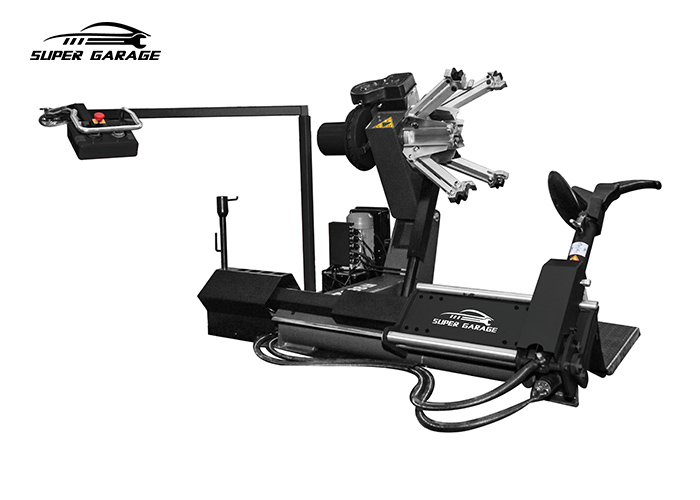

14''~42''Automatic Tire Changing Machine Heavy Duty Truck Tire Changer SG-TC598

TECHNICAL DATA:

• Rim Clamping Capacity: 14"-42"
• Max. wheel weight:1600kg
• Max. Wheel Assembly Width:1050mm
• Max. Wheel Assembly Diameter:2300mm
• Pump Motor: 2.2 kw,380v-3ph,50Hz (220V optional)
• Gearbox Motor: 2.2kw, 380v-3ph 50Hz (220V optional)
• Bead breaker force:3300kg
• Operation control voltage:24V
• Noise Level:70db
• Power Supply:220V/400V/50/60HZ/1P/3P

MAIN FEATURES:

1. Full Automatic , For industrial /Agricultural /Earthmoving wheel
2. Power pump runs only when the tire changer is in use for more efficient operation and reduction of associated costs
3. Self-centering, standard clamping capacity of 14 to 42 inches. Chuck rotation operates clockwise and counter-clockwise
4. Adjustable mount and demount head can accommodate different wheel sizes.
5. Tool head includes standard disk and hook for bead loosening, mounting and demounting tires. The hook tool folds out of the way when not in use.
6. Portable control system is convenient for operator to observe from different angle, improving the efficiency and safety.
7. Operation voltage 24V
8. Emergency control switch
9. CE certificated

Optional Parts:

Alu-alloy rims protection rings

Alu-alloy rims protection set
