26'' Semi Automatic Tire Changing Machine for Light Truck Tire Changer

TECHNICAL DATA

1. Rim Clamping Capacity: 14"-26"
2. Max. wheel weight:500kg
3. Max. Wheel Assembly Width:780mm
4. Max. Wheel Assembly Diameter:1600mm
5. Pump Motor: 1.5 kw,380v-3ph,50Hz(220V Optional)
6. Gearbox Motor: 1.8kw, 380v-3ph 50Hz(220V Optional)
7. Bead breaker force:2500kg
8. Operation control voltage:24V
9. Power Supply:220V/400V/50/60HZ/1P/3P

MAIN FEATURES

Automatic professional tire changer for heavy operations and demanding truck tire services and car repair shops. Suitable for normal and tubeless tires. Self-centering 4-arm hydraulic chuck, which is moved by a two-speed motor. The mounting head can move clockwise and counterclockwise. A hydraulic jack, which moves the entire arm, takes care of its movement up and down. The hydraulics also take care of the tool head arm, which has an automatic lifting and manual rotation. The machine includes a mobile remote control and a ramp that makes it easy to adjust the wheel to the correct position.

• Power pump runs only when the tire changer is in use for more efficient operation and reduction of associated costs
• Self-centering, standard clamping capacity of 14 to 26 inches. Chuck rotation operates clockwise and counter-clockwise
• Adjustable mount and demount head can accommodate different wheel sizes.
• Tool head includes standard disk and hook for bead loosening, mounting and demounting tires. The hook tool folds out of the way when not in use.
• Portable control system is convenient for operators to observe from different angle, improving the efficiency and safety.
• Operation voltage 24V
• Emergency control switch
• CE certificated

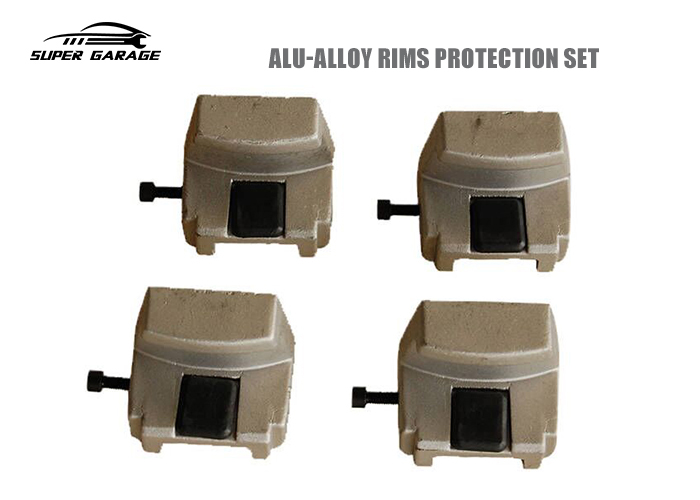

Optional Parts:
