    110V Disc / Drum Brake Lathe 70RPM 88RPM 118RPM With Bench

    Ask Lasest Price
    Brand Name : SG
    Model Number : SG-BL850C
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 800 Units per month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

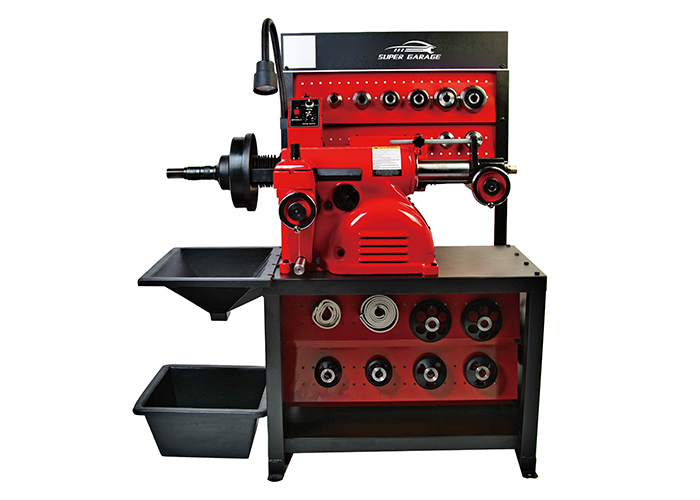

    110V Disc / Drum Brake Lathe 70RPM 88RPM 118RPM With Bench

    Brake Disc Lathe For Car Repair Brake Drum Disc Rotor Lathe Combination Disc/Drum Brake Lathe With Bench SG-BL850C


    Brake Lathe SG-BL850C


    Technical Data:


    Model
    SG-BL850C
    Range of processing brake drum
    Φ152-Φ500mm
    Range of processing brake disc
    Φ180-Φ385mm
    Max depth of processing brake drum
    245mm
    Spindle Speed
    70,80,115r/min
    Spindle feed speed
    0.002-0.02 (0.05-0.5mm)Rev
    Cross feed speed
    0.002-0.02 (0.05-0.5mm)Rev
    Max processing depth
    0.5mm
    Machine Power
    0.75kw
    Motor
    110V/220V/380V,50/60HZ
    Gross weight
    340kg
    Dimension (L×W×H)
    970×920×1140mm
    Packing size (L×W×H)
    1220x890x1490mm

    Features:


    • For Boring Repair Light Trucks, Cars And Mini-Car Brake Drum And Brake Disc.
    • A Horizontal Structure, With A Low Center Of Gravity, And So Easy To Install Card.
    • The Use Of The Brake Drum Wheel Hub Bearing Outer Ring As The Positioning Reference, It Can Quickly And Easily Achieve Brake Hub Clamping And Drilling With A Mandrel And Sleeve Cut Repair, Positioning And Processing Datum Unified, High-Precision Machining.
    • Machine Rigidity, Fast Cutting Speed, High Processing Efficiency. Under Normal Circumstances, Turning Only Once To Achieve The Required Precision.
    • Using An Electronic Continuously Variable Transmission Mechanism, Simple Operation, Easy Maintenance, Safe And Reliable, Is An Ideal Repair Equipment.
