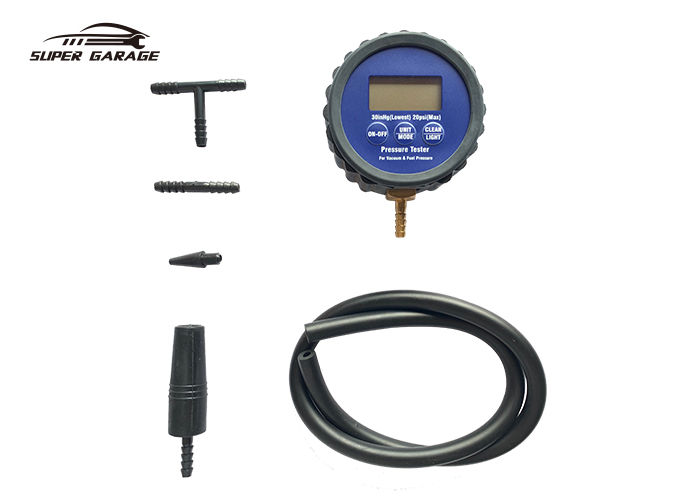

Digital Dial Gauge Vacuum And Fuel Pump Tester Gauge Kit , Fuel Pump And Vacuum Tester Gauge SG-HS2217

Vacuum/Pressure Gauge Kit SG-HS2217

Technical Data:

1. Basic Accuracy: +/- 3%
2. Range Of Measurement:3—20psi,30inhg
3. Working Condition:-20℃—60℃,Below 95%Rh, Normal Atmosphere
4. Storage And Transportation Conditions:-30℃—70℃
5. Battery Specification:6f22 9v Laminated Cell
6. The Minimum Resolution Of Light Band: 3.3 Psi Major Light Band Graduations.
7. The Corresponding Time Of The Light Band ≤ 1s.

Features

• Main screen: Showing the current pressure value.
• Test mode display symbols: When showing“Full Scale 20 PSI” means the tester is in pressure test mode when showing“Full-Scale 30inHgVAC” means the tester is in the Vacuum test mode.
• Light band: It changes as the pressure changes, with the positive pressure it moves from left to right and the vacuum pressure it moves from right to left.
• ON-OFF: The button of power on or power OFF. In the absence of any operation, about 6 minutes automatic shutdown.
• The Low-voltage symbol.
• The pressure unit of the current state.
• CLEAR/LIGHT: The initial value will be reset by pressing the button briefly. Keep pressing the button for 3 seconds the backlight will be turned off or on.
• UNIT/MODE: The unit of measurement will change by pressing the button briefly: PSI, kPa,bar,inHg,cmHg.Keep pressing the button for 3 seconds, it will show“Full Scale 20 PSI” then keep pressing the button for other 3 seconds,it will show“Full-Scale 30inHgVAC”
